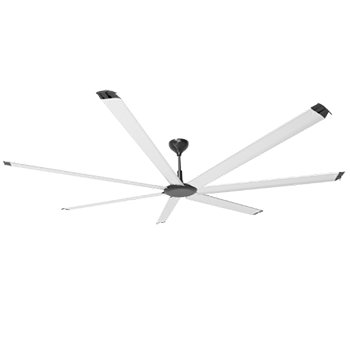

series 1 large energy-saving industrial HVLS fan with light and stylish look. The blades combine aircraft-grade aluminum with a patented winglet design, it reduces the wind resistance and noise, and reach the best performance of high volume and low speed. The best energy-efficient solution for large-scale space such as restaurant, factory, and commercial space.
|
Diameter |
8 ft (2.5m) |
|
Weight |
18 kg |
|
Speed |
95 RPM |
|
Power |
84 W |
|
Max Airflow |
24,500 CFM |
|
Noise |
<35 dB(A) |
|
Power source |
220-240 VAC |
|
Environment |
Indoor |
※The above specifications are test from SUNON Lab and the data will be affected by different environmental conditions.
Case Study：http://www.invni.com.tw/case/2
Powerful HVLS Fan series 1
SUNON HVLS Fan has a lighter and stylish look. The airfoil combines aircraft-grade aluminum with a patented winglet design, it reduces the wind resistance and wind noise. Suitable for users who don’t have high ceilings, worry about oppressive space, or want a quieter environment.

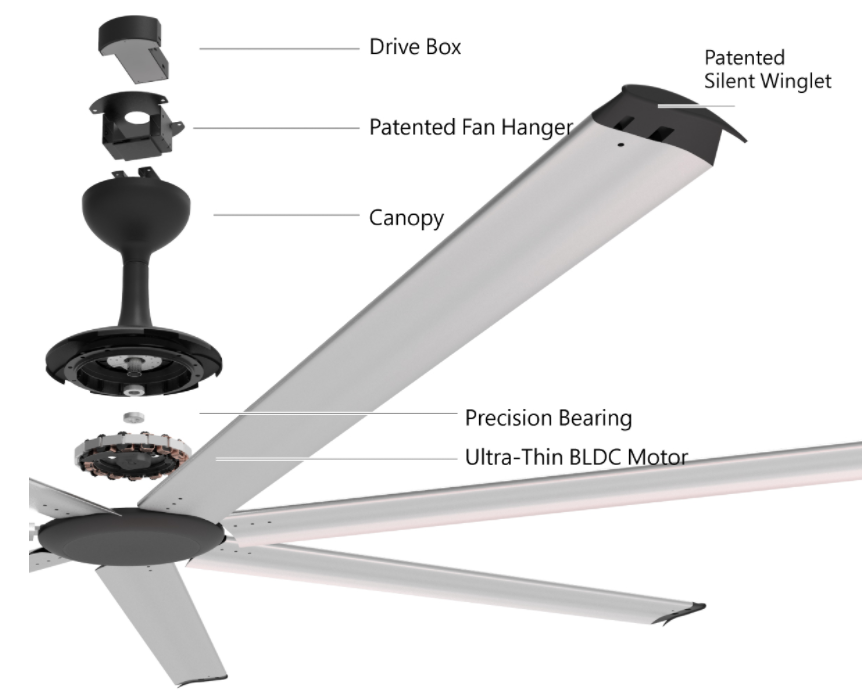

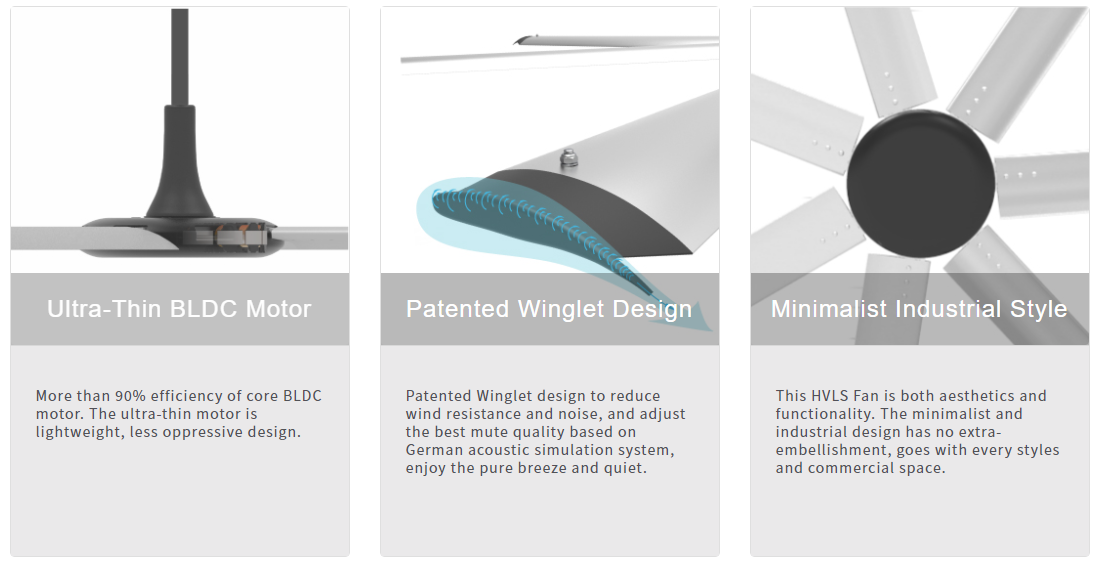

More Than 90% Of Motor Efficiency, Gearless Direct Drive Motor , No Need for Regular Lubrication Maintenance.
The high-efficiency motor is equipped with an aerodynamic winglet design, which can generate massive airflow with very low power consumption. The Best efficient choice that runs 12-18 hours at 1 kilowatt.
Patented winglet design, it reduces the wind noise and provides smooth airflow.
The sleek, ultra-thin motor design and engaging visuals extend the user’s experience by 25 kg lightweight look.

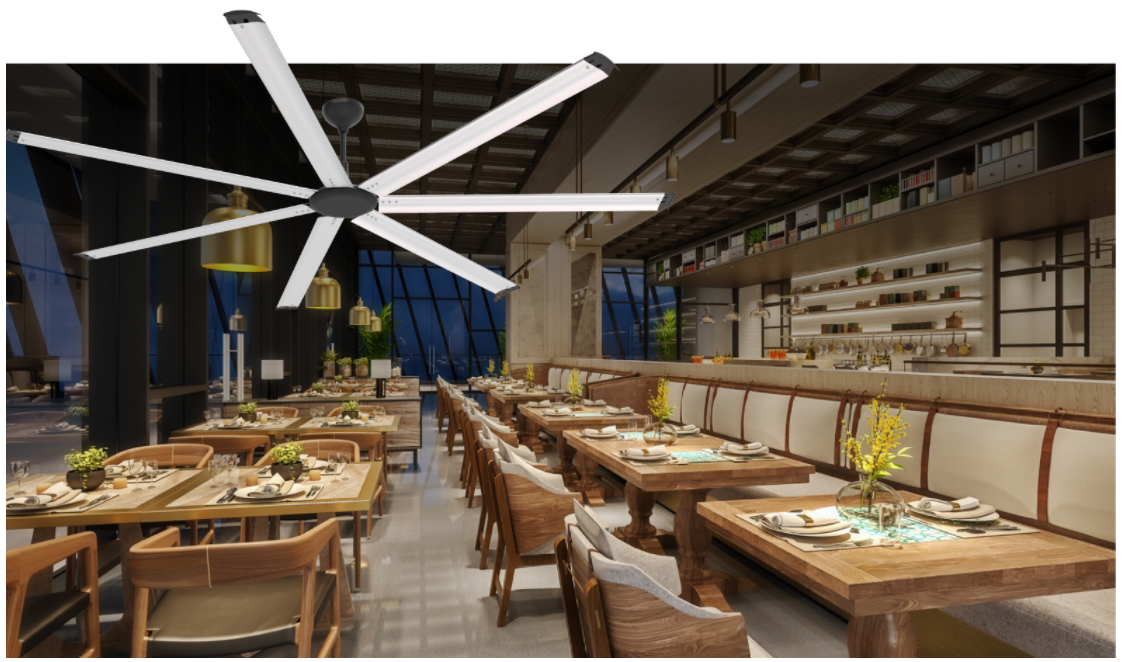

Exhibition, Bookstore, Coffee Shop, Library, Museum, Office, Conference Room, Hotel Lobby, Hospital, Gym and Residential.

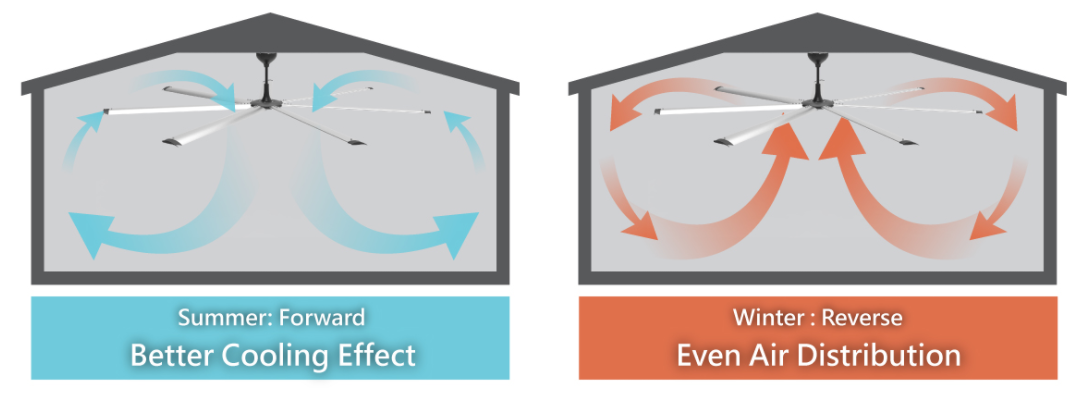

Powerful HVLS Fan series 1 resemble the natural breeze, it will generate the massive and smooth airflow. It can replace the AC and make occupants feel the 5-8 degrees temperature difference. Combine with the AC system, it reduces the costs. In the winter, the reverse mode can be switched to push down the warm air on the roof/ceiling, which achieves the effect of adjusting the temperature.

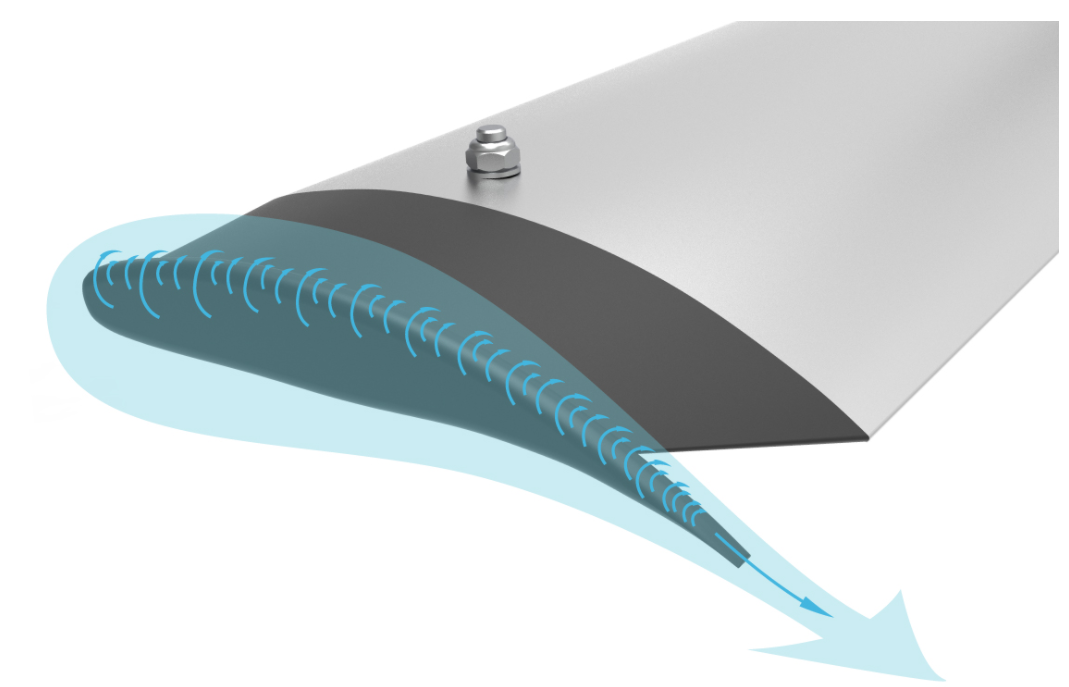

Due to the airflow through the airfoil, the tip of the airfoil is the region with the most severe air disturbance. SUNON runs the tests in 1:1 ratio models through numerous professional simulations, and we also refer to aircraft winglet design. In the end, we present you our patented silent winglet that can suppress the wind noise and turbulence. Combined with aerodynamic winglet to create a comfortable airflow for the workspace.
